Shearing

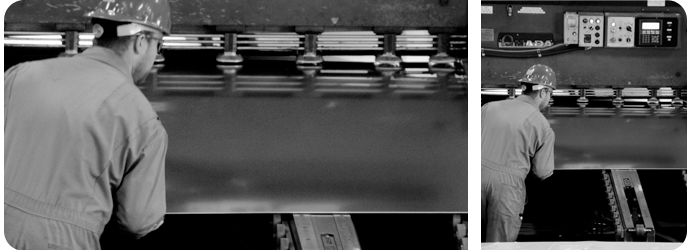

Amada Precision Shear
The Amada Precision Shears are located in multiple locations and deliver superb accuracy and consistency which is critical for custom size blanking. These are premier machines and they complement shearing equipment located throughout our branch network to provide fast, local service. We also pride ourselves in top quality packaging to insure the blanks are delivered with maximum protection.

Thickness

Mild steel 32-Ga (.010″) Min. , .250″ Max.
Aluminum .010″ Min., .250″ Max.
Stainless Steel 10-Ga (.135″) Max.

Width of Cut

Width of Strip

120″ Maximum2.000″ Minimum (Narrower strips on request)

	Standard Tolerance	Precision Tolerance
Parallelism Squareness Length & Width	+/- .032″ +/- .032″ +/- .032″	+/- .01″ in 60″ Not Applicable +/- .005″ up to 24″ +/- .010″ 24″ to 60″ Over 60″ use Std Tolerance

Wysong Shear (not pictured)

Thickness	Mild steel 32-Ga (.010″) Min. , .250″ Max. Aluminum .010″ Min., .250″ Max. Stainless Steel 10-Ga (.135″) Max.
Width of Cut Length of Cut Width of Strip Std. Tolerance	144″ Maximum 144″ Maximum .500″ Minimum +/- .032″
